UV Resin Curing Guide: 365nm Flashlight Tips

UV resin is the shortcut crafters, jewelry makers, and modelers love: liquid resin that hardens in minutes instead of hours. The catch is that the light does the curing, and not all UV lights cure equally. A true 365nm UV flashlight cures resin harder, clearer, and deeper than the purple glow from a generic UV light. This guide explains how UV curing works, how to pick the right wavelength, and a step-by-step workflow for clean, tack-free results.

How UV Resin Curing Actually Works

UV resin is a photopolymer: it stays liquid until its photoinitiators absorb enough ultraviolet energy, at which point the molecules link into a solid plastic. The reaction needs UVA light, roughly 365–405nm. Once the resin has received enough UV energy, it hardens — no heat, no mixing, no waiting overnight like two-part epoxy.

Two things determine the result: the wavelength of the light and the energy dose the resin receives. Shorter UVA wavelengths carry more energy per photon and penetrate deeper, while the total dose — light intensity times exposure time — decides whether a piece cures all the way through or only on the surface.

365nm vs. 395nm for Resin Curing

Most generic UV lights emit 395nm. It works, but with limits:

• 365nm penetrates deeper. The shorter wavelength reaches below the surface, so thin jewelry, keycaps, and miniature parts cure through instead of skinning over.
• 365nm cures harder. More of the photoinitiator's absorption peak sits near 365nm, so the same exposure time delivers a more complete, less tacky cure.
• 395nm leaves surface cures. Long-wave UV activates mainly the top layer. Thick pours or opaque micas can stay soft underneath while the surface feels done — the classic "tacky" problem.
• One rule for thick work: build thick pieces in thin layers, curing each layer, no matter which wavelength you use. No single pass can cure a deep pour evenly.

Bottom line: for resin, choose 365nm. It is the wavelength crafters get the most reliable results from, and it is the one resin suppliers design their formulas around.

Why a ZWB2 Filter Matters

Cheap UV lights leak a lot of visible purple light alongside their UV. That visible glow does nothing for curing — it only adds glare and makes it harder to see what you are doing. A ZWB2 optical filter blocks that visible leak and passes the 365nm line cleanly. The beam looks dimmer and deeper violet to your eyes precisely because more of the energy is in the UV band your resin actually uses. For detail work like jewelry and miniatures, that cleaner output means more consistent cures and less eye strain.

RUV3 vs. 502UV PRO: Which One for Your Bench?

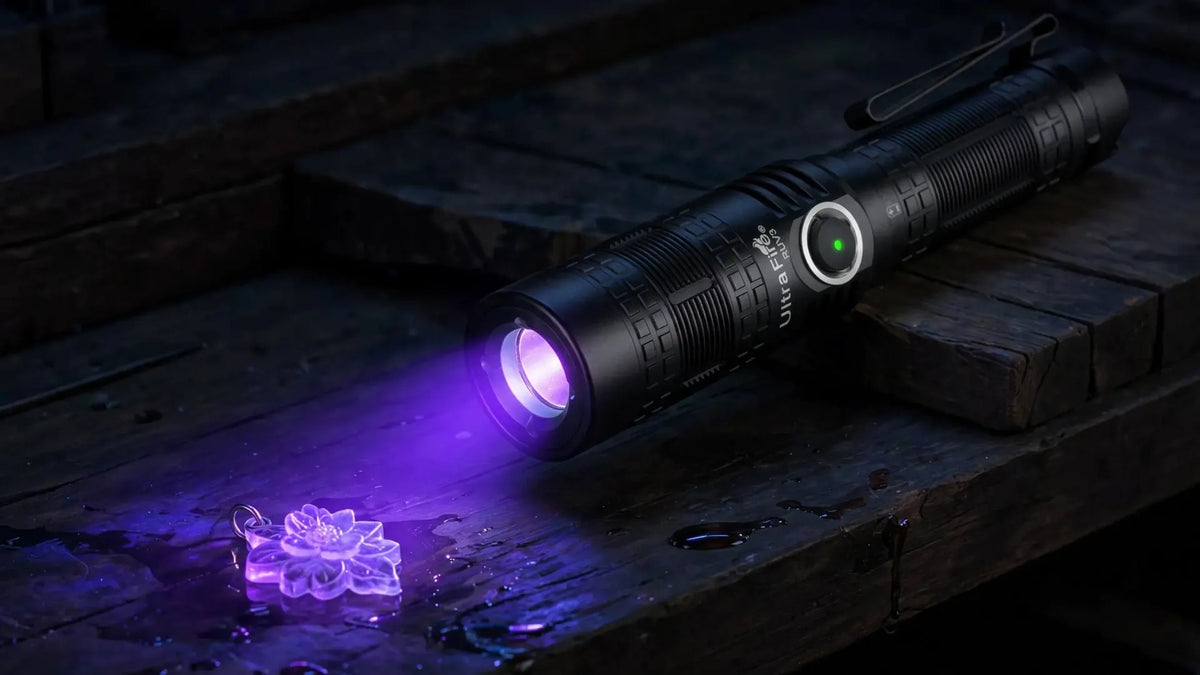

Choose the RUV3 if you cure small pieces, do detail or repair work, and want a precise, clean 365nm beam you can aim exactly where the resin sits.

Choose the 502UV PRO if you fill molds and trays, cure batches, or work on larger pieces — the triple-LED layout covers more area in one pass. Make sure to pick the 365nm version for resin; the 395nm version is the better fit for general detection tasks.

The 6-Step Cure Workflow

Good resin work is a process, not a single flash of light. Follow these steps for consistently clear, hard, tack-free results:

1. Pour thin. Keep each layer around 1–2 mm. Thin layers cure completely; thick pours trap uncured resin underneath.
2. Cure each layer before pouring the next. A short cure per layer beats one long cure at the end.
3. Keep the light close. Hold the flashlight a few inches from the piece — intensity falls off fast with distance. Slowly sweep the beam for even coverage.
4. Flip and rotate. Cure the front, then flip the piece and cure the back. Molds block UV, so the side touching the mold needs its own pass.
5. Give it a final long cure. After the piece is fully built, an extra minute or two of exposure hardens the surface and removes residual tack.
6. Let it rest. Fully cured resin feels hard and glassy, not rubbery or sticky. If it is still tacky, it needs more UV — see troubleshooting below.

Quick Troubleshooting

• Tacky or sticky surface: undercured — the layer was too thick, the light too far, or the time too short. Thin the layer, move closer, and add exposure.
• Soft underneath, hard on top: the surface cured but UV never reached the depth. Build in thinner layers and cure each one.
• Cloudy or yellowed: overexposure or an old/overheated resin. Shorten cure time and store resin away from heat and daylight.
• Bubbles: trapped air from pouring. Warm the resin slightly before pouring, pour slowly, and pop surface bubbles before curing.
• Uneven hardness: the beam never reached part of the piece. Sweep slowly, rotate the piece, and mind mold shadows.

What You Can Cure (and What to Skip)

• Great fits: UV resin jewelry and keychains, miniature and model parts, nail art, resin repairs on ceramics and glass, sealing small electronics, clear-coat touch-ups.
• Skip: structural repairs that need real strength (use two-part epoxy instead), thick art pours in one shot (layer them), anything food-contact — UV resin is for craft, not kitchenware.

Final Thoughts

UV resin only asks two things of your light: the right wavelength and enough clean energy to reach all the way through the pour. A true 365nm flashlight with a ZWB2 filter delivers both, which is why it cures harder and clearer than generic purple-glow lights — and why tacky failures mostly disappear once the light is right.

Start with the RUV3 for detail work, or reach for the 502UV PRO (365nm version) when you need to cover molds and batches. Pair either with thin layers, close passes, and a flip halfway through — and your pieces will come out hard, glassy, and ready to wear.
