UV Output Performance
Wavelength: 254nm (Shortwave UVC)
UV Output Power: 5 Watts
Radiant Power: 60mW
ZWB2 Filter: Dedicated Black ZWB2 Filter Lens Included (Crucial for blocking visible light and delivering a pure 254nm UVC beam).
Construction & Design
Dimensions: 4.72 inches (L) x 0.91 inches (Head) x 0.91 inches (Tail) / 120mm x 23mm x 23mm
Weight: 2.72 oz / 77g (Excluding battery)
Body Material: CNC Machined Solid Aluminum Alloy
Finish: Military-Grade Hard-Anodized (Type III)

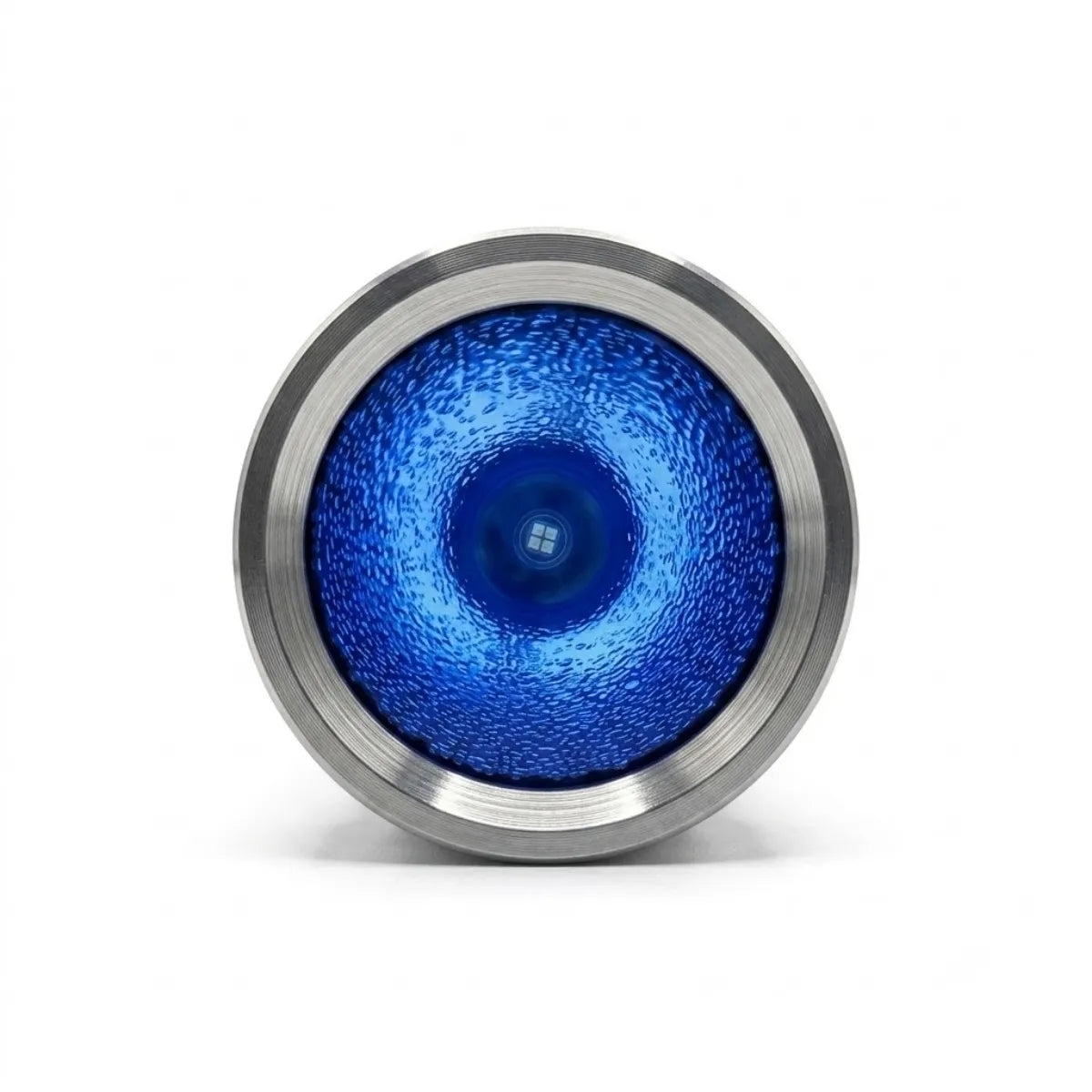

Reflector: Specialized High-Temperature Vacuum-Plated Aluminum Reflector
Color: Matte Black
Operation & Power
Power Source: 1x 18650 Rechargeable Li-ion Battery (External charging required; battery not included).
Voltage Range: 3.7V - 4.2V
Current: 0.5 Amps
Operation Modes: Single Mode (High Power UVC Only)

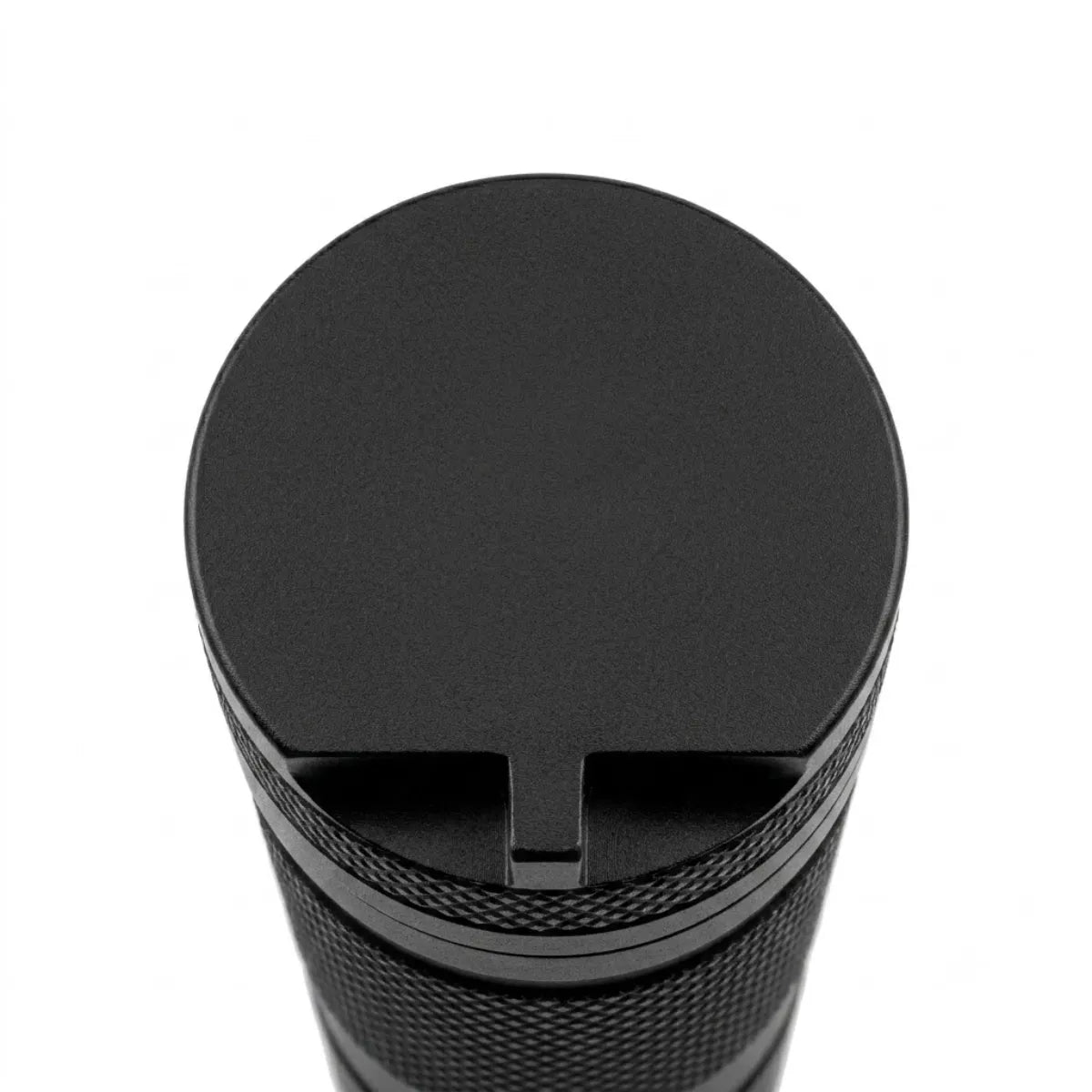

Switch Type: Tactical Tail Cap Clicky Switch
Durability & Safety
Ingress Protection: IP54 (Dust resistant and splashproof)
Primary Applications
Shortwave fluorescent mineral identification (rockhounding)
Forensic inspection and trace evidence analysis
Non-destructive testing (NDT)
EPROM chip erasure
